Good

These observations present higher quality products after the background subtraction.

The extended calibrated spectra is not included in the data because it was not necessary for making the selections.

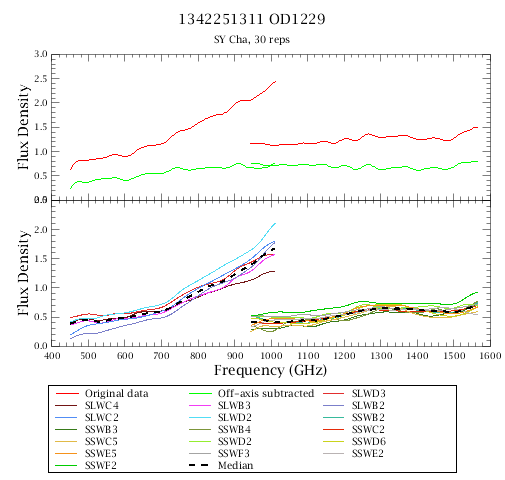

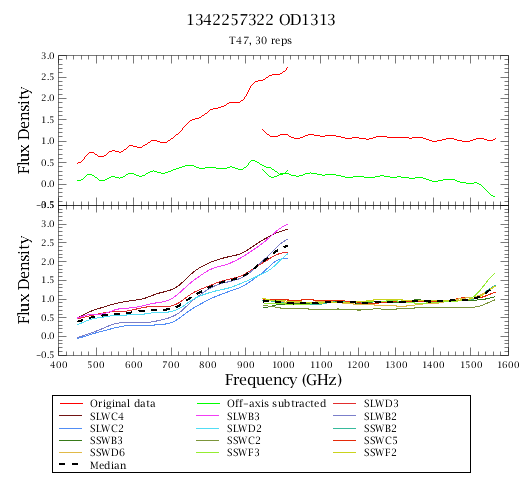

In order to improve the quality of the products the observations were reprocessed using 3 sigma - clipping method. The goal was to discard the outliers among the off-axis detectors in each observation and implement the background subtraction using only the remaining ones. This was done in the following way:

  1. For each array of detectors, SLW and SSW, a list was made containing the flux values of the smoothed spectra of each off-axis detector at a specific wavelength (950GHz for SLW and 1400 GHz for SSW). The median (medSLW and medSSW) and the median absolute deviation (madSLW and madSSW) of the lists were calculated.
  2. For each off-axis detector if the absolute value of the difference between the flux of the detector at the specific wavelength (950GHz/1400GHz) and the median (medSLW/medSSW) is bigger than 3 times the median absolute deviation then that off-axis detector is discarded.
  3. The detectors that were not discarded were used to obtain the smoothed median spectrum that was finally subtracted from the values of the central detectors.

Header parameters:

  • Ratio SLW First Ring before background subtraction [%]: This parameter refers to the ratio of the flux of the first ring of SLW off-axis detectors to the flux of the central detector.
    This was obtained by calculating the ratios of the flux of every SLW off-axis detector to the flux of the central detector for each value of frequency. In order to eliminate the dependancy on frequency, the median was taken for each SLW off-axis detector ratio array, resulting in a single value for every one of them. The final value resulted from taking the median from these last values.
    The off-axis detectors used are SLWB2, SLWB3, SLWC2, SLWC4, SLWD2 and SLWD3.

  • Ratio SSW First Ring before background subtraction [%]: This parameter refers to the ratio of the flux of the first ring of SSW off-axis detectors to the flux of the central detector.
    This was obtained by calculating the ratios of the flux of every SSW off-axis detector to the flux of the central detector for each value of frequency. In order to eliminate the dependancy on frequency, the median was taken for each SSW off-axis detector ratio array, resulting in a single value for every one of them. The final value resulted from taking the median from these last values.
    The off-axis detectors used are SSWD3, SSWC3, SSWC4, SSWE4 and SSWE3. (SSWD5 is a dead bolometer)

  • Gap after background subtraction [Jy]: This value refers to the gap between the SLW and the SSW spectra of the central detector in the overlap region (944-1080 GHz) after the background subtraction has been done. It is the median of the difference between the flux of the SLW central detector and the flux of the SSW central detector for each frequency value.

  • Relative Gap after background subtraction [%]: This value refers to the ratio of the gap between the SLW and the SSW spectra of the central detector to the flux of the SLW central detector in the overlap region (944-1080 GHz) after the background subtraction has been done. It is calculated dividing the difference between the flux of the SLW central detector and the flux of the SSW central detector by the flux of the SLW central detector for each frequency value.


  • raDecOffset: The offset between the commanded position and the actual reconstructed pointing, which includes any systematic BSM offset (bsmOffset), but not the APE. Included in the observation's Meta Data.

File number Target Obs ID Point source calibrated spectra before and after background subtraction* Point source calibrated spectra before and after background subtraction using 3 sigma-clipping for selection of off-axis detectors Ratio SLW First Ring before background subtraction [%] Ratio SSW First Ring before background subtraction [%] Ratio SSW Second Ring before background subtraction [%] Gap after background subtraction [Jy] Relative Gap after background subtraction [%] raDecOffset [arcsec] PACS Photometry Comments
1_121 Id81-1 1342197467 ... ... 63.92 -8.59 -2.76 -0.2 129.7 3.79 ... Very faint source
1_123 Id130-1 1342197469 ... ... 80.74 -16.23 -20.18 -0.05 88.17 1.02 ... Very faint source
1_13 Mrk 231 1342187893 ... ... 23.69 5.55 4.46 -0.04 -1.43 1.84 ...
1_136 IRAS 09371+1212 1342198263 ... ... 23.89 -7.15 -7.42 -0.27 -15.69 5.38 No PACS map available
1_152 NGC7469 1342199252 ... ... -7.11 0.54 -1.85 0.25 5.84 3.43 ...
1_153 NGC34 1342199253 ... ... -36.57 -3.35 -4.91 0.07 3.95 2.6 ...
1_24 SMMJ212312 1342187915 ... ... 50.32 34.38 33.8 -0.16 -14.89 2.04 ... Very faint source
1_40 HD 161796 1342189117 ... ... -18.43 3.08 2.31 -0.01 -0.1 1.06 ...
1_47 NGC 5315 1342189544 ... ... 49.68 19.22 16.07 0.25 12.83 1.3 No PACS map available
1_48 R Scl 1342189545 ... ... 39.72 27.39 21.84 0.19 38.55 3.17 ...
1_52 arp220 1342190674 ... ... 6.74 2.13 0.77 -0.09 -0.47 1.53 ...
1_54 Beta Pic 1342191204 ... ... 199.69 -13.05 -20.06 -0.17 -20.99 0.52 ...
1_71 Gamma Dra 1342192182 ... ... 54.34 22.46 6.58 -0.27 43.91 2.52 ...
1_73 Gamma Dra 1342192184 ... ... 59.72 17.41 -7.2 -0.49 71.6 2.64 ...
1_75 Gamma Dra 1342192186 ... ... 40.36 15.32 -4.56 0.53 127.73 2.78 ...
1_80 NGC 1614 1342192831 ... ... -11.63 3.31 1.29 0.07 2.49 1.6 ...
1_86 IC4687 1342192993 ... ... 1.21 0.8 -0.86 0.11 5.03 1.67 ...

File number Target Obs ID Point source calibrated spectra before and after background subtraction* Point source calibrated spectra before and after background subtraction using 3 sigma-clipping for selection of off-axis detectors Ratio SLW First Ring before background subtraction [%] Ratio SSW First Ring before background subtraction [%] Ratio SSW Second Ring before background subtraction [%] Gap after background subtraction [Jy] Relative Gap after background subtraction [%] raDecOffset [arcsec] PACS Photometer Comments
2_5 HD100546 1342202273 ... ... 12.36 3.1 2.57 -0.06 -0.44 2.75 ...
2_62 UGC05101 1342209278 ... ... -16.78 -2.44 -3.33 0.01 0.43 2.3 ...
2_67 Mrk 273 1342209850 ... ... 6.05 2.01 1.24 -0.13 -8.7 2.81 ... SLW under SSW overlap region
2_70 Arp193 1342209853 ... ... -5.75 0.68 -0.42 0.08 2.17 1.95 ...
2_84 TW Hya 1342210862 ... ... -1.97 -0.27 -1.57 -0.15 -2.09 1.86 ...
2_87 Mrk331 1342212316 ... ... 15.5 2.96 1.59 0.25 7.73 3.78 ...
2_96 IRAS13120-5453 1342212342 ... ... 14.39 3.71 2.45 0.02 0.25 1.62 ...
2_107 CGCG436-030 1342213443 ... ... 5.74 1.09 -0.25 0.16 12.67 2.52 ...
2_116 HD 142527 1342214821 ... ... 7.29 3.17 2.31 0.56 2.31 3.41 ...
2_117 RCW120-58-1 1342214822 ... ... 83.08 65.36 62.39 4.06 30.95 1.16 ...
2_118 RCW120-cond5bis-1 1342214823 ... ... 89.07 71.94 73.97 2.42 34.42 2.04 ...
2_119 RCW120-76-1 1342214824 ... ... 87.54 67.78 65.68 0 3.83 2.88 ...
2_120 RCW120-38 1342214825 ... ... 50.16 34.39 19.78 26.46 26.59 0.98 ...
2_121 RCW120-105-1 1342214826 ... ... 80.89 59.07 58.33 3.46 31.12 3.24 ...
2_125 NGC6240 1342214831 ... ... 1.49 2.08 -0.31 0.29 9.08 3.24 ...
2_127 RCW120-cond5-1 1342214839 ... ... 68.94 58.84 55.96 7.01 39.52 0.75 ...
2_128 RCW120-cond8-1 1342214840 ... ... 74.4 67.51 66.91 5.4 35.5 1.33 ...
2_139 RY Tau 1342214857 ... ... 18.68 5.54 5.66 0.17 4.36 4.45 ...
2_141 HD 104237 1342216876 ... ... -22.14 5.12 1.01 -0.19 -11.08 3.01 ...
2_147 IC443C 1342216885 ... ... 44.81 67.09 51.58 0.7 58.22 1.94 No PACS map available
2_148 HD 36112 1342216886 ... ... 28.13 10.08 8.61 -0.31 -7.04 2.04 ...
2_149 AB Aur 1342216887 ... ... 26.84 6.68 5.76 -0.46 -4.4 2.25 ...
2_159 ESO286-G035 1342216901 ... ... -11.72 3.48 2.16 0.34 15.42 3.9 ...
2_160 V1300 Aql 1342216902 ... ... 11.01 8.39 5.79 0.19 12.19 4.31 ...
2_161 SAO 163075 1342216903 ... ... 36.26 14.77 14.94 -0.22 -24.18 0.74 No PACS map available
2_164 HD 163296 1342216906 ... ... 29.99 16.04 15.2 -1.22 -8.88 1.25 ... SLW under SSW overlap region after BS
2_177 SMMJ2135 1342219562 ... ... -17.76 4.22 5.98 -0.19 -45.26 0.96 ... Very faint source. SLW under SSW overlap region after BS
2_186 GOODS-N 1342219575 ... ... 89.1 12.84 4.24 0.02 99.9 2.27 ... Very faint source
2_187 CGCG448-020 1342221679 ... ... 142.09 -3.43 -9.71 -0.15 -15.74 1.04 ... Check extended calibrated spectra
2_189 MCG+04-48-002a 1342221682 ... ... 0.07 5.7 3.85 -0.16 -9.05 3.27 ... Check extended calibrated spectra

File number Target Obs ID Point source calibrated spectra before and after background subtraction* Point source calibrated spectra before and after background subtraction using 3 sigma-clipping for selection of off-axis detectors Ratio SLW First Ring before background subtraction [%] Ratio SSW First Ring before background subtraction [%] Ratio SSW Second Ring before background subtaction [%] Gap after background subtraction [Jy] Relative Gap after background subtraction [%] raDecOffset [arcsec] PACS Photometer Comments
3_0 MWC349 1342221684 ... ... 66.95 53.25 53.44 -0.83 -27.8 1.9 ...
3_1 V1515 Cyg-1 1342221685 ... ... 85.06 69.12 64.47 0.34 15.71 0.36 ...
3_7 UGC12150 1342221699 ... ... -10.79 -2.09 -4.09 0.09 3.22 3.36 ...
3_8 IC5298 1342221700 ... ... -20.69 -3.98 -6.24 -0.01 0.48 2.11 ...
3_9 NGC7679a 1342221701 ... ... -34.67 -5.77 -8.4 0.22 14.68 1.56 ...
3_10 NGC7592 1342221702 ... ... -36.92 -8.42 -11.82 0.26 16.02 2.33 ...
3_12 NGC0232a 1342221707 ... ... -29.84 -4.8 -6.89 0.32 9.65 2.79 ...
3_13 ESO244-G012 1342221708 ... ... -42.81 -9.01 -11.47 0.29 17.83 4.25 ...
3_14 IRAS00430-7326 1342221709 ... ... 24.37 2.99 0.02 0.17 26.98 4.53 ... Very faint source
3_20 NGC6621 1342221716 ... ... -17.97 -2.02 -6.86 0.36 13.19 0.62 ...
3_30 Titan 1342224755 ... ... 15.33 3.89 1.82 -0.33 -2.18 12.58 No PACS map available
3_31 Titan 1342224756 ... ... 15.05 4.01 3 0.54 3.43 12.19 No PACS map available
3_32 Titan 1342224757 ... ... 14.41 3.72 2.99 0.75 4.57 12.31 No PACS map available
3_35 IRAS 03158+4227 1342224764 ... ... -30.2 -16.97 -18.69 0.11 22.72 1.26 No PACS map available Faint source
3_39 IRAS 23365+3604 1342224768 ... ... -26.03 -6.33 -7.35 0.08 8.05 1.64 ...
3_44 Honda-Mrkos-Pajdusakova 1342227458 ... ... 77.64 72.28 69.87 0.06 53.8 1196.7 No PACS map available
3_45 NGC 2022 1342227518 ... ... 46.18 22.53 -5.87 0 116.54 2.06 No PACS map available Faint source
3_48 HD 44179 1342227779 ... ... 11.3 2.52 1.18 -0.06 -0.88 1.69 ...
3_50 HD 44179 1342227781 ... ... 8.18 1.99 0.71 0.06 0.71 1.42 ...
3_52 IRAS04271+3849 1342227786 ... ... 24.87 4.49 2.49 0.31 14.93 1.54 ...
3_59 RNO 90 1342228704 ... ... 79.01 47.07 42.47 -0.29 -30.3 0.66 ...
3_62 MCG+02-20-003 1342228728 ... ... -9.24 -3.18 -4.49 0.07 3.32 2.99 ...
3_66 DR Tau 1342228735 ... ... 39.58 13.77 13.98 0.07 2.77 2.9 No PACS map available
3_71 IRAS05442+1732 1342230413 ... ... 24.51 5.62 4.07 -0.43 -32.74 1.65 ...
3_74 IRASF17138-1017 1342230418 ... ... 15.22 4.05 3.43 0.17 6.25 1.06 ...
3_75 ESO099-G004 1342230419 ... ... 30.57 10.22 8.36 0.25 10.89 2.18 ...
3_76 IRAS 06035-7102 1342230420 ... ... -12.1 -9.73 -10.41 0.01 1.89 2.23 ...
3_77 IRAS 08311-2459 1342230421 ... ... -7.66 -5.59 -5.53 0.04 4.66 1.38 No PACS map available
3_83 V4046 Sgr 1342231043 ... ... 20.02 16.21 14.96 0.06 1.93 2.71 No PACS map available
3_86 IRAS17578-0400 1342231047 ... ... 24.86 8.99 6.83 0.09 1.61 2.38 ...
3_87 IRAS 20087-0308 1342231049 ... ... 38.81 13.1 12.07 -0.04 -4.07 1.96 No PACS map available
3_97 IRAS09022-3615 1342231063 ... ... 37.54 9.66 8.4 0.02 1.95 2.15 ...
3_102 NGC2388a 1342231071 ... ... 1.52 1.93 0.64 0.23 5.17 0.49 ...
3_112 IRAS08355-4944 1342231975 ... ... 58.25 33.59 27.85 -0.01 14.99 1.25 ...
3_115 IRAS 08572+3915 1342231978 ... ... 32.46 19.5 9.91 -0.13 117.79 3.59 ... Faint source. SLW under SSW overlap region
3_116 IRAS 07598+6508 1342231979 ... ... 69.24 41.77 27.42 0.03 83.74 1.43 No PACS map available Faint source
3_117 HerMES -Lock-1-1 1342231980 ... ... 39.68 27.55 14.86 -0.1 89.65 1.55 ... Faint source
3_118 HATLAS-GAMA9-326 1342231985 ... ... 71.42 27.7 25.97 -0.04 89.09 2.01 ... Faint source
3_119 HATLAS-GAMA09-1-1 1342231986 ... ... 36.12 11.39 9.77 0.03 22.75 2.31 ... Faint source. Small pointing offset?
3_120 HATLAS-GAMA09-3-1 1342231987 ... ... 82.65 31.35 55.27 -0.02 89.49 2.1 ... Faint source
3_121 HATLAS-GAMA9-ID97 1342231988 ... ... 36.2 18 19.33 0.05 26.83 1.97 ... Faint source. Pointing offset, extended?
3_122 SPT-S 053817-5030.8 1342231989 ... ... 23.86 8.59 9.85 -0.04 -5.91 1.22 ... Faint source
3_131 NGC5010 1342236996 ... ... -18.35 2.27 -0.56 0.22 6.08 1.86 ... Good or skip? SECT?
3_132 3C 305 1342236998 ... ... 72.92 -24.06 -33.19 -0.05 79.69 3.37 ... Very faint
3_140 4C 12.50 1342237024 ... ... 6.28 -10.43 -16.7 -0.14 -23.02 1.31 ...
3_144 VV340a 1342238241 ... ... -36.04 -0.03 -4.51 0.05 1.79 1.81 ... Spectra looks good, PACS image semi-extended
3_147 I Zw 1 1342238246 ... ... 78.02 -22.25 -27.33 -0.08 -19.38 1.73 ...
3_159 IRAS 15250+3609 1342238711 ... ... 24.09 -0.08 2.57 -0.06 -5.39 1.99 ...
3_160 VV705 1342238712 ... ... 12.09 2.06 2.48 -0.02 -1.48 1.65 ...
3_166 IRASF01417+1651 1342239343 ... ... 34.28 7.4 3.54 0.09 6.12 0.55 ...
3_167 3C 31 1342239344 ... ... 46 12.12 7.45 -0.02 -3.54 0.45 ...
3_171 3C 315 1342239350 ... ... 76.53 59.84 39.21 0.17 105.68 0.87 ... Faint source
3_175 NGC0317B 1342239358 ... ... 27.35 4.92 1.55 0.19 8.58 0.88 ...

File number Target Obs ID Point source calibrated spectra before and after background subtraction* Point source calibrated spectra before and after background subtraction using 3 sigma-clipping for selection of off-axis detectors Ratio SLW First Ring before background subtraction [%] Ratio SSW First Ring before background subtraction [%] Ratio SSW Second Ring before background subtraction [%] Gap after background subtraction [Jy] Relative Gap after background subtraction [%] raDecOffset [arcsec] PACS Photometry Comments
4_3 UGC01845 1342240022 ... ... 23.46 6.77 4.32 0.09 3.39 0.87 ...
4_5 MCG-05-12-006 1342242589 ... ... 190.47 -41.35 -44.6 -0.64 -69.81 0.21 ... SLW under SSW overlap region before BS
4_6 ESO420-G013 1342242590 ... ... -86.7 -11.6 -13.21 -0.04 -1.14 0.51 ...
4_8 PG 1613+658 1342242593 ... ... 112.21 120.69 123.82 -0.16 115.91 0.43 ... SLW under SSW overlap region before BS
4_9 FTS-FLS-01-1 1342242594 ... ... 121.11 112.53 119.9 0.06 40.23 0.64 ... SLW under SSW overlap region before BS
4_15 NML Cyg 1342243592 ... ... 15.92 6.22 4.07 -0.48 -2.19 1.87 ...
4_18 PN M 1-92 1342243606 ... ... 6.53 2.48 0.83 -0.27 -4.13 1.04 ...
4_19 HD179218 1342243607 ... ... 52.17 22.56 20.59 -0.36 -21.01 0.38 ...
4_20 IRC+10420 1342243608 ... ... 42.3 9.66 8.21 0.03 0.6 0.63 ...
4_27 IRAS 20414-1651 1342243623 ... ... -32.6 -5.35 -7.75 0 0.24 0.64 No PACS map available
4_43 HD50138 1342245118 ... ... 71.63 37.83 35.42 0.04 42.71 0.36 No PACS map available
4_54 IRAS 22491-1808 1342245082 ... ... -4.78 -5.25 -7.73 0.1 19.32 0.8 ...
4_61 iras 08011-3627 1342245844 ... ... 62.34 37.63 35.37 -0.31 -30.28 0.87 No PACS map available SLW under SSW overlap region after BS
4_72 3C 433 1342245864 ... ... 87.54 63.85 61.62 -0.05 88.6 0.29 ...
4_75 HCG 95C-1 1342245868 ... ... 52.36 23.36 20.83 0.09 34.38 0.14 ...
4_76 NGC7465 1342245869 ... ... 33.05 10.3 6.15 0.05 14.23 0.55 ...
4_82 HCG 6B-1 1342246258 ... ... 31.78 7.1 -4.6 -0.12 104.02 1 ... Very faint source
4_83 IRAS 00188-0856 1342246259 ... ... -11.66 -6.05 -11.43 -0.16 -33.53 0.27 No PACS map available
4_84 FTS-SWIRE-05-1 1342246268 ... ... 53.79 -19.24 -29.4 -0.07 56.99 0.3 ...
4_87 IRAS 23230-6926 1342246276 ... ... 61.12 -5.27 -9.76 -0.06 -15.3 0.6 No PACS map available
4_88 IRAS 23253-5415 1342246277 ... ... 18.25 -0.54 -4.08 0.02 2.83 0.25 No PACS map available
4_93 WX Psc 1342246973 ... ... -52.56 1.54 -3.18 0.04 2.6 0.03 ...
4_104 FTS-LOCK1-1 1342246993 ... ... 75.19 -99.35 -106.53 -0.03 20.73 1.08 ...
4_105 3C 405 1342246994 ... ... 46.28 25.68 23.15 0.04 13.31 0.77 ...
4_106 IRASF10565+2448 1342247096 ... ... -97.4 -2.87 -6.81 -0.41 -24.92 0.58 ... SLW under SSW overlap region
4_118 HATLAS-NGP-NA.V1.186 1342247122 ... ... 0.51 -2.12 -0.09 -0.1 -22.83 0.31 ... Faint source
4_120 iras 08544-4431 1342247558 ... ... 60.51 32.03 31.73 -0.38 -17.4 0.46 No PACS map available
4_121 iras 09256-6324 1342247559 ... ... 13.67 16.02 14.03 -0.33 -25.88 0.28 No PACS map available

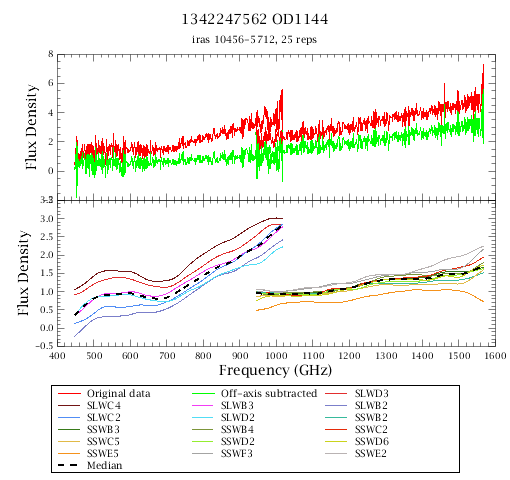

4_123 iras 10456-5712 1342247562 ... ... 61.83 37.12 36.23 -0.35 -33.05 0.4 No PACS map available
4_133 ESO353-G020 1342247615 ... ... 1.43 2.84 1.42 0.2 5.33 0.45 ... Skip. No need for BS
4_135 MCG-02-01-051 1342247617 ... ... 16.07 7.19 5 0.16 20.17 0.23 ...
4_141 HATLAS-GAMA12-V2.43 1342247744 ... ... 177.23 141.68 142.88 -0.05 -4.59 0.51 ...
4_146 HATLAS-GAMA12-V2.30 1342247758 ... ... -44.7 -111.82 -116.11 -0.17 -36.53 0.88 ... SLW under SSW overlap region after BS
4_147 HATLAS-GAMA12-V2.257 1342247759 ... ... 143.49 129.34 122.99 -0.1 55.1 0.12 ...
4_148 IRAS 11095-0238 1342247760 ... ... 136.63 -71.33 -73.28 -0.11 22.23 0.4 No PACS map available
4_150 SF.v1.88 1342247764 ... ... 40.61 174.48 157.94 -0.01 7.05 0.55 ...
4_151 SF.v1.100 1342247765 ... ... 32.36 -41.83 -31.8 -0.03 25.24 0.05 ...
4_153 OQ 208 1342247769 ... ... 112.81 -93.15 -82.59 0.01 49.2 0.58 ...
4_154 7 Iris 1342248226 ... ... -75.2 1.33 -6.18 -0.06 -3.9 4.99 No PACS map available
4_158 SG.v1.77 1342248232 ... ... 14.27 -7.94 -9.66 0.02 20.7 0.6 ... Very faint source
4_159 IRAS 12071-0444 1342248239 ... ... 40.9 -4.29 -3.78 -0.02 -2.78 0.5 No PACS map available
4_165 HATLAS-NGP-NC.V1.143 1342248412 ... ... 87.33 52.63 77.56 -0.18 122.3 0.85 ... SLW under SSW in overlap region
4_166 HATLAS-NGP-NA.V1.56 1342248416 ... ... -26.1 -25.1 -23.72 -0.09 -12.85 0.3 ... SLW under SSW overlap region
4_168 HD 101584 1342248418 ... ... 5.21 2.22 0.77 -0.43 -3.65 0.89 ...
4_170 ESO507-G070 1342248421 ... ... -2.13 1.52 -0.13 -0.05 -2.6 0.79 ...
4_173 HATLAS-NGP-NA.V1.177 1342249065 ... ... -50.94 -48.42 -55.71 -0.01 4.94 1.18 ... SLW under SSW overlap region
4_174 HATLAS-NGP-NA.V1.144 1342249066 ... ... -65.66 -60.95 -70.57 0 4.78 0.39 ... SLW under SSW overlap region

File number Target Obs ID Point source calibrated spectra before and after background subtraction* Point source calibrated spectra before and after background subtraction using 3 sigma-clipping for selection of off-axis detectors Ratio SLW First Ring before background subtraction [%] Ratio SSW First Ring before background subtraction [%] Ratio SSW Second Ring before background subtraction [%] Gap after background subtraction [Jy] Relative Gap after background subtraction [%] raDecOffset [arcsec] PACS Photometry Comments
5_4 Mrk 463 1342249047 ... ... -0.47 -13.87 -14.88 0.02 38.56 0.57 No PACS map available
5_7 3C 84 1342249054 ... ... 2.14 2.29 -0.22 0.05 1.34 0.74 ... Shape
5_10 0235+164 1342249452 ... ... 33.56 13 -1.02 -0.06 -13.36 0.5 ...
5_11 IRAS 14348-1447 1342249457 ... ... 19.87 2.51 -1.25 0.13 10.89 0.48 ...
5_14 IRAS12116-5615 1342249462 ... ... 43.11 11.59 8.04 0.13 7.44 0.55 ...
5_15 HCG 25B-1 1342249463 ... ... 21.83 -21.33 -27.79 0.15 65.15 0.74 ...
5_31 3C 326 1342250516 ... ... 115.72 15.09 -0.06 -0.08 100.73 0.44 ... Very faint. SLW under SSW overlap region after BS
5_41 Hen 2-113 1342251280 ... ... 14.91 9.15 5.66 -0.11 -2.7 0.76 No PACS map available
5_42 IRAS 15194-5115 1342251281 ... ... 42.86 24.95 16.83 -0.24 -13.02 0.1 ...
5_43 CGCG052-037 1342251284 ... ... -12.3 2.66 -0.54 -0.15 -7.75 0.71 ...
5_45 GSS 30 IRS1 1342251286 ... ... 81.75 56.42 47.47 10.18 45.37 0.87 ...
5_47 WL12 1342251290 ... ... 83.22 67.98 68.52 2.12 34.1 0.37 ...
5_52 B2 0722+30 1342251306 ... ... 19.44 7.91 5.67 0.14 15.95 0.6 No PACS map available
5_53 U Mon 1342251307 ... ... 31.32 15.3 14.07 0.18 13.81 0.54 ...
5_58 IRAS16342-3814 1342251319 ... ... 11.58 4.25 2.61 -0.61 -4.32 0.33 ...
5_78 FTS-SWIRE-04-1 1342253658 ... ... 110.49 76.41 65.23 0.05 52.35 0.37 ... Faint source
5_79 IRAS 07598+6508 - correct position 1342253659 ... ... 104.33 -37.99 -38.21 -0.01 22.68 1.77 No PACS map available
5_80 B2 0827+24 1342253660 ... ... -34.94 -49.87 -46.86 0.02 5.24 0.57 No PACS map available
5_87 PKS 1549-79 1342253671 ... ... 3.81 -10.7 -12.51 -0.03 14.23 0.59 ...
5_92 MGE_3681 1342253970 ... ... 91.38 80.84 76.67 1.14 43.72 0.66 ...
5_93 MGE_3448 1342253971 ... ... 97.45 93.33 90.65 -0.06 87 0.26 ...
5_94 FTS-SWIRE-07-1 1342254033 ... ... 21.65 -50.79 -48.49 -0.13 98.2 0.39 ...
5_95 FTS-SWIRE-01-1 1342254034 ... ... 27.12 -26.02 -31.67 0.08 57.76 0.24 ...
5_96 FTS-SWIRE-03-1 1342254035 ... ... 39.04 -24.53 -22.09 0.01 63.56 0.42 ...
5_97 CW Leo Arc-1 1342254036 ... ... 69.09 11.89 2.29 0.05 114.79 0.79 ...
5_99 MACSJ2043.2-2144 1342254038 ... ... -40.39 -24.6 -26.67 0.1 30.11 0.36 ...
5_104 FTS-LOCK2-1 1342255266 ... ... 71.97 34.8 35.06 -0.05 12.98 0.33 ...
5_105 FTS-SWIRE-06-1 1342255267 ... ... 30.83 23.72 27.2 0.16 29.49 0.36 ...
5_106 SMMJ2135-0102 1342255274 ... ... 47.77 22.9 26.3 0 2.65 1.04 ...
5_109 HATLAS-GAMA09-ID17-1 1342255280 ... ... 44.25 16.82 19.49 0.04 11.58 0.24 ...
5_110 HATLAS-GAMA09-2-1 1342255281 ... ... 26.55 16.54 20.97 0.1 17.19 0.89 ...
5_111 HATLAS-GAMA9-124 1342255282 ... ... 28.7 32.84 31.59 0.18 34.04 0.3 ...
5_118 IRAS FSC10214+4724 1342255799 ... ... 12.01 -13.19 -20.09 0.12 26.65 0.55 No PACS map available
5_122 SMMJ2135-0102 1342255813 ... ... 13.53 4.54 0.98 0.06 15.27 0.33 ...
5_123 SMMJ2135-0102 1342255814 ... ... 15.61 7.19 2.28 -0.02 12.84 0.62 ...
5_126 GOODS-N 1342256083 ... ... 42.67 32.92 20.29 0.06 60.09 1.17 ...
5_127 GOODS-N 1342256084 ... ... 53.08 38.74 16.5 0.1 87.51 1.24 ...
5_135 GOODS-N 1342256106 ... ... 24.13 29.07 18.23 0.1 50.24 0.68 ...
5_136 GOODS-N 1342256107 ... ... 49.37 20.69 15.52 0.13 94.69 0.64 ...
5_137 GOODS-N 1342256108 ... ... 44.46 24.67 11.8 0.08 79.76 0.31 ...
5_142 GOODS-N 1342256358 ... ... 71.43 58.78 49.82 0.07 94.23 0.67 ...
5_143 GOODS-N 1342256359 ... ... 72.13 60.42 57.03 0 69.52 0.22 ...
5_144 SMMJ2135-0102 1342256366 ... ... 40.96 28.89 23.1 0 0.39 0.52 ...
5_149 HATLAS-SGP-A-53 1342256372 ... ... 32.39 30.86 21.93 0.1 30.35 0.2 ...
5_150 SA.v1.44 1342256373 ... ... 37.35 24.97 21.61 0 21.35 0.28 ...
5_151 SC.v1.128 1342256374 ... ... 30.22 26.17 22.3 0.02 44.37 0.74 ...
5_152 HATLAS-SGP-B-202 1342256375 ... ... 42.52 36.2 34.37 0.17 52.97 0.83 ...
5_157 IRAS00430-7326 1342257308 ... ... 34.81 20.15 11.08 -0.17 -19.56 0.17 ... %EDITCEL{text, 30}%
5_159 CR Cha 1342257313 ... ... 22.67 14.05 -0.33 -21.66 0.25 ...
5_160 SZ Cha 1342257314 ... ... 27.61 17.75 -0.22 -11.02 0.8 ...
5_161 CS Cha 1342257315 ... ... 77.16 49.39 -0.69 -113.94 0.18 ...
5_163 WX Cha 1342257317 ... ... 86.38 94.92 -0.16 77.39 1.36 ...
5_168 T47 1342257322 ... ... 75.01 79.63 0.05 15.07 0.37 ...
5_169 T54 1342257323 ... ... 90.79 94.47 0.03 66.74 1.23 ... very faint
5_170 CV Cha 1342257324 ... ... 47.77 45.25 0.03 6.73 0.63 ...
5_172 WZ Cha 1342257326 ... ... 47.11 79.97 0.28 32.4 0.63 ...
5_173 WW Cha 1342257327 ... ... 44.36 16.98 0.06 0.5 0.26 ...
5_174 Hn 11 1342257328 ... ... 87.04 81.79 0.04 7.09 0.52 ... very faint
5_175 WY Cha 1342257329 ... ... 86.33 84.78 0.11 42.03 0.33 ...
5_176 T43 1342257330 ... ... 70.65 91.47 0.3 42.31 0.19 ...
5_177 VZ Cha 1342257331 ... ... 26.83 42.06 0.08 11.99 0.21 ...

File number Target Obs ID Point source calibrated spectra before and after background subtraction* Point source calibrated spectra before and after background subtraction using 3 sigma-clipping for selection of off-axis detectors Ratio SLW First Ring before background subtraction [%] Ratio SSW First Ring before background subtraction [%] Ratio SSW Second Ring before background subtraction [%] Gap after background subtraction [Jy] Relative Gap after background subtraction [%] raDecOffset [arcsec] PACS Photometry Comments
6_2 IRAS 22036+5306 1342257338 ... ... 19.79 5.84 5 -0.09 -1.92 0.86 ...
6_16 SD.v1.70 1342257910 ... ... 105.96 116.25 140.37 -0.48 167.44 0.79 ... SLW under SSW overlap region
6_17 SD.v1.133 1342257911 ... ... 119.57 108.1 123.43 -0.16 100.47 1.31 ... SLW under SSW overlap region
6_18 HATLAS-SGP-D-328 1342257912 ... ... 164.91 119.8 118.57 0.06 42.41 0.84 ...
6_23 HeLMS45 1342257925 ... ... 177.77 70.71 67.51 -0.05 8.32 0.66 ... SLW under SSW overlap region
6_28 HATLAS-SGP-E-165 1342257930 ... ... 166.26 134.27 124.21 -0.02 19.3 0.23 ...
6_29 SB.v1.143 1342257931 ... ... 192.69 129.61 113.62 -0.02 28.23 0.2 ...
6_32 FTS-BOOTES-3-1 1342257936 ... ... 143.51 -23.41 -33.05 -0.09 14.26 0.61 ...
6_33 FTS-BOOTES-4-1 1342257937 ... ... 124.7 143.92 125.61 0.01 46.96 0.76 ...
6_38 FTS-DAN-02-1 1342258701 ... ... 15.73 6.63 -4.71 0.04 52.85 0.3 ... Very faint
6_39 FTS-DAN-1-1 1342258702 ... ... 7.27 -12.07 -8.86 0.02 68.96 0.44 ... Very faint
6_40 HeLMS44 1342259064 ... ... -9.96 -15.94 -18.2 -0.02 -3.19 0.32 ...
6_43 FTS-FLS-01-1 1342259071 ... ... 8.4 -7.48 -13.5 0.05 29.89 1 ...
6_45 FTS-BOOTES-02-1 1342259073 ... ... 56.61 -27.04 -36.1 0.07 44.99 0.16 ...
6_49 Cloverleaf 1342259573 ... ... -10.81 8.44 -1.05 -0.2 -58.03 0.68 No PACS map available SLW under SSW overlap region
6_50 2355-106 1342259581 ... ... -43.37 -31.71 -34.22 0.03 16.75 0.78 No PACS map available
6_51 FTS-CDFS-01-1 1342259582 ... ... 140.63 -53.88 -58.57 0.11 40.93 0.45 ...
6_52 FTS-CDFS-02-1 1342259583 ... ... 87.19 -23.89 -27.79 0.02 24.73 0.32 ...
6_53 FTS-CDFS-04-1 1342259584 ... ... 4.38 -7.64 -8.23 0.01 12.95 0.58 ...
6_100 SMMJ02399-0136 1342262900 ... ... 113.97 109.19 121.34 -0.12 101.74 1.44 ...
6_101 S3MC00541 -7319 1342262902 ... ... 189.35 -138.81 -167.56 0.25 23.56 0.27 ...
6_102 IRAS05011-6815 1342262903 ... ... -68.82 -17.9 -31.33 0.35 15.73 0.63 ...
6_129 mmj0107 1342265843 ... ... 33.19 45.39 49.62 0 3.92 0.36 ...
6_149 AFGL 5379 1342268287 ... ... 64.41 21.52 18.63 0.34 3.67 1.1 ...
6_160 IRAS 19067+0811 1342268308 ... ... 102.48 92.23 94.21 -0.46 105.51 0.44 ...
6_161 OH30.7+0.4 1342268309 ... ... 98.75 89.2 84.89 1.6 68.34 0.26 ...
6_162 OH21.5+0.5 1342268311 ... ... 104.1 87.43 83.36 -0.15 86.63 0.64 ...
6_0 UZ Cha 1342257332 ... ... 75.42 80.89 0.07 24.53 0.9 ...
6_65 V2508 Oph 1342262823 ... ... 85.5 54.52 -0.64 -229.63 0.82 ...
6_66 DoAr 28-1 1342262824 ... ... 127.8 64.24 -0.59 93.75 0.19 ...
6_67 DoAr 16-1 1342262825 ... ... 145.97 82.39 -0.56 58.76 0.33 ...
6_68 IRS63 1342262826 ... ... 50.97 27.43 1.25 12.21 0.28 ...
6_69 IRS 60 1342262827 ... ... 148.16 81.84 -0.51 57.98 0.57 ...
6_70 ROX 44 1342262828 ... ... 100.48 43.71 -0.65 446.75 0.68 ...
6_71 ROX 43A1 1342262829 ... ... 178.66 99.72 -0.61 54.58 0.55 ...
6_72 ROX 42C 1342262830 ... ... 173.87 101.12 -0.88 55.24 0.08 ...
6_73 16293-2424 1342262831 ... ... 111.54 88.61 -1.23 141.36 0.66 ...
6_75 16289-2457 1342262833 ... ... 142.99 103.91 -1.1 69.87 0.05 ...
6_77 GY344 1342262835 ... ... 96.14 79.65 0.61 31.88 0.37 ...
6_78 IRS51 1342262836 ... ... 98.72 81.68 -0.91 -45.66 0.39 ...
6_79 GY235 1342262837 ... ... 103.74 88.82 -1.8 -392.76 0.37 ...
6_80 GY314 1342262838 ... ... 114.12 79.3 -1.59 145.6 0.55 ... SLW under SSW in overlap region
6_81 IRS49 1342262839 ... ... 115.26 94.17 -1.82 99.36 0.37 ... SLW under SSW overlap region
6_84 GY284 1342262842 ... ... 132.1 101.68 -1 33.89 0.51 ... Skip. No need for BS
6_87 WL2 1342262845 ... ... 128.24 85.07 -3.16 74.18 0.89 ... SLW under SSW overlap region
6_92 16201-2410 1342262850 ... ... 100 72.82 -0.2 -34.26 0.57 ...
6_93 DoAr 25 1342262851 ... ... 77.4 57.8 -1 -57.63 0.66 ... SLW under SSW overlap region after BS
6_110 GG Tau 1342265813 ... ... 11.77 8.1 -0.24 -3.47 0.17 ...
6_111 DM Tau 1342265814 ... ... 53.86 45.99 -0.19 -24.56 0.39 ...
6_112 CI Tau 1342265815 ... ... 42.4 32.88 -0.05 -2.21 0.45 ...
6_113 F04297+2246A 1342265816 ... ... 85.07 78.53 0.03 7.06 0.67 ...
6_114 DN Tau 1342265817 ... ... 56.78 50.73 -0.04 -5.63 0.41 ...
6_115 AA Tau 1342265818 ... ... 45.46 41.21 -0.06 -5.6 0.64 ...
6_116 GK Tau 1342265819 ... ... 74.79 76.81 0.18 25.63 0.23 ...
6_118 HK Tau 1342265821 ... ... 77.12 48.53 0.09 7.15 0.05 ...
6_119 FX Tau 1342265822 ... ... 96.44 76.92 -0.12 14.72 0.43 ...
6_120 FT Tau 1342265823 ... ... 57.86 46.74 0.31 20.89 0.4 ...
6_121 IP Tau 1342265824 ... ... 80.11 70.15 -0.1 -46.21 0.28 ...
6_122 V892 Tau 1342265825 ... ... 45.69 21.02 0.08 1.27 0.18 ...
6_123 04154+2823 1342265826 ... ... 77.41 62.61 -0.04 -4.35 0.05 ...
6_126 Cygnus A 1342265829 ... ... 60.81 49.6 -0.05 -10.71 0.17 ...
6_127 Cygnus A 1342265830 ... ... 61 51.67 0.04 7.02 0.27 ...
6_128 Cygnus A 1342265831 ... ... 56.03 50.26 -0.04 -6.59 0.33 ...
6_132 LkCa 15 1342265848 ... ... 8.09 12.31 0.02 0.93 0.76 ...
6_133 DL Tau 1342265849 ... ... 23.23 21.05 0.1 4.72 0.31 ...
6_134 ZZ Tau IRS 1342265850 ... ... 35.33 28.45 0.62 20.82 0.82 ...
6_135 FV Tau 1342265851 ... ... 82.89 70.46 0.21 22.89 0.39 ...
6_136 DG Tau 1342265852 ... ... 39.53 18.25 0.26 3.32 0.69 ...
6_137 04260+2642 1342265853 ... ... 54.74 40.89 -0.01 -1.08 0.02 ...
6_138 DH Tau 1342265854 ... ... 56.77 54.31 -0.02 -4.29 0.25 ...
6_139 IQ Tau 1342265855 ... ... 32.32 35.16 -0.09 -10.1 0.52 ...
6_140 DK Tau 1342265856 ... ... 49.75 41.97 0.02 2.87 0.6 ...
6_141 UZ Tau 1342265857 ... ... 41.03 27.45 0.02 1.28 0.42 ...
6_143 DO Tau 1342265859 ... ... 59.33 33.15 0.37 15.38 0.62 ...

File number Target Obs ID Point source calibrated spectra before and after background subtraction* Point source calibrated spectra before and after background subtraction using 3 sigma-clipping for selection of off-axis detectors Ratio SLW First Ring before background subtraction [%] Ratio SSW First Ring before background subtraction [%] Ratio SSW Second Ring before background subtraction [%] Gap after background subtraction [Jy] Relative Gap after background subtraction [%] raDecOffset [arcsec] PACS Photometry Comments
7_25 CU Cha 1342224750 ... ... 11.94 5.93 -0.13 -0.47 2.46 ...
7_29 Cida 9 1342227782 ... ... 82.23 45.93 -0.17 -73.92 2.18 ...
7_30 V836 Tau 1342227783 ... ... 73.35 57.92 0.16 33.25 2.14 ...
7_32 DQ Tau 1342228736 ... ... 90.88 43.29 -0.23 -82.07 1.34 ...
7_33 Haro 6-37 1342228737 ... ... 56.6 32.7 -0.28 -24.2 1.7 ...
7_34 GM Aur 1342228740 ... ... 6.21 3.17 -0.16 -4.18 2.1 ...
7_35 SU Aur 1342228741 ... ... 74.79 46.51 0.18 20.08 2.1 ...
7_36 UY Aur 1342228742 ... ... 66.95 30.88 0.02 1.9 1.86 ...
7_37 B43 1342231080 ... ... 92.27 79.45 -0.11 -63.51 1.89 ...
7_46 16156-2358 1342242600 ... ... -41.02 -21.42 -0.04 -2.32 0.61 No PACS photometry available
7_47 NAME LDN 1507A-1 1342243594 ... ... 87.66 112.57 0.06 20.63 0.31 No PACS photometry available
7_48 04385+2550 1342243595 ... ... 90.49 46.58 -0.52 -191.27 0.37 ...
7_50 GO Tau 1342243597 ... ... 83.92 78.51 -0.51 -428.85 0.79 ...
7_52 RW Aur A 1342243599 ... ... 58.97 24.85 -0.42 677.66 0.66 ...
7_85 Alpha Boo 1342247751 ... ... 435.16 -34.05 -0.15 -21.86 28.66 ...
7_89 TW Cha 1342248245 ... ... 62.8 43.98 -0.06 -17.85 1.31 ...
7_90 T56 1342248247 ... ... 80.18 13 0.07 96.03 0.66 ...
7_91 T42 1342248248 ... ... 79.28 51.77 0.43 13.47 0.99 ...
7_95 UX Tau A 1342249050 ... ... 60.17 22.88 0 0.07 0.36 ...
7_96 CW Tau 1342249051 ... ... 84.45 43.42 -0.28 -34.84 0.36 ...
7_97 MHO 3 1342249052 ... ... 69.62 47.37 0.97 42.03 0.42 ...
7_110 CY Tau 1342250504 ... ... 96.36 80.94 -0.59 258.39 0.3 ...
7_121 16193- 2314 1342251283 ... ... 101.47 82.7 -0.27 -89.8 0.63 ...
7_123 XX Cha 1342251291 ... ... 101.64 73.54 0.1 134.58 0.46 ...
7_130 SX Cha 1342251309 ... ... 78.59 66.98 0.01 2.41 0.62 ...
7_132 SY Cha 1342251311 ... ... 53.72 47.25 -0.06 -8.5 0.69 ...
7_133 T Cha 1342251312 ... ... 38.66 21.15 -0.07 -4.58 0.81 ...

-- Laura Susana Alvarez Mera - 2015-12-07 ---

++ Comments

Edit | Attach | Watch | Print version | History: r17 < r16 < r15 < r14 < r13 | Backlinks | Raw View | Raw edit | More topic actions
Topic revision: r17 - 2017-06-07 - IvanV

This site is powered by the TWiki collaboration platform Powered by Perl
